Fixing a sagging headliner in 1999 Plymouth Grand Voyager

  This 1999 Plymouth Grand Voyager has a serious sagging headliner problem - not a problem to fix if you have a little time. It took about 2 hours to remove, recover and replace the headliner in this Grand Voyager - with an unexperienced new employee. The complication factor for the 99 Grand Voyager headliner replacement is low. The color we used for this Plymouth Grand Voyager headliner was 2037 lt neutral. The grand and large minivan headliner kit is what we used for this Grand Voyager headliner [comes with 2 adhesives].


94 Buick Lesabre Install
94 Camaro T-Top Install
91 Chrysler 5th Ave. Install
BMW 525 Install
94 Lincoln Install
92 Buick Park Ave Install
Camaro Install
89 Olds 98 Install
91 Chevy Truck Install
Jeep Cherokee Install
Buick Lesabre Install
89 Cadillac Install
S10/Sonoma Truck Install
S10 Blazer Install
85 Buick Electra Install
80 Bonneville Install
56 Belair Install
Buick Regal Install
Dodge Caravan Install
Dodge Shadow Install
Sun Visor Recover
2002 Tahoe Install
91 Cadillac Fleetwood
Dodge Dakota Truck
98 Jaguar XJ8
95 Ford Explorer
90 Toyota Corolla
1999 Volkswagon Beetle
2003 Mazda 6
2000 Nissan Truck
1999 Grand Voyager headliner install
1999 Plymouth Grand Voyager headliner As you can see from this picture, the complete headliner had fallen and was being held up by the dome lights, visors and anything else that attached through the headliner board itself. The first thing to do is remove the sunvisors and hangers that support them, and then pull the rubber door trim loose. This trim hides the edge of the headliner board [trims it off].
grand voyager side trim panels There were very few screws that held the Grand Voyager in place, the front, middle and rear side panels were clipped into place with metal clips. We didn't remove the side panels to remove the headliner, we only unclipped one or two of the top clips so we could slide the headliner board out from under the trim panels.

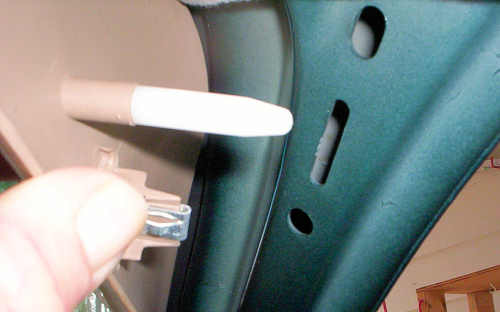

grand voyager metal panel clips This is a picture of the windshield post trim (at the front of the minivan). The clip can be seen as well as the line up stud.
grand voyager front dome light There were 3 interior lights in this Grand Voyager, this is a pic of the front dome light. It can be removed by pulling or prying down on it - it is secured with 4 metal clips to the body of the minivan. Once it is removed, the electrical connecter can be unplugged.

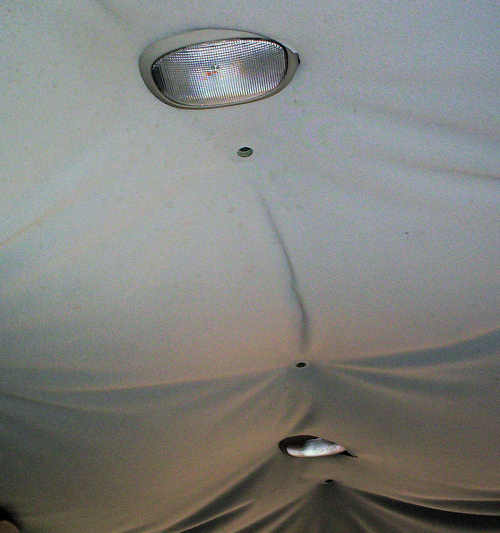

voyager rear dome lights The other 2 dome lights in the 99 Grand Voyager (rear dome lights) can be removed by unsnapping the lens to free one side and then sliding the dome light to the right in this case to remove it. Once it's removed the electrical connecter can be unplugged.

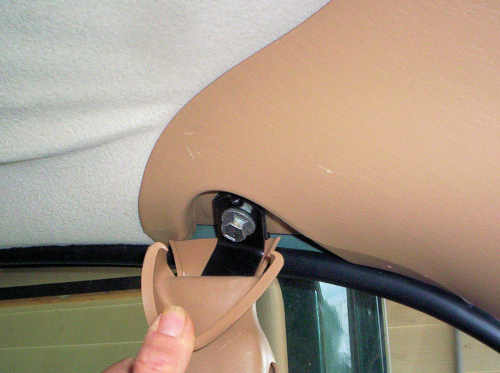

seat belt bracket grand voyager The rear seat belt bracket in this Grand Voyager needs to be removed so the rear trim panel can be loosened. There is a bolt that secures the seat belt bracket, once it's removed the side trim panel can be loosened to the point the headliner board can be slide forward to fall free.
door rubber grand voyager As stated before, all the rubber door trim should be pulled down to expose the edge of the headliner board.

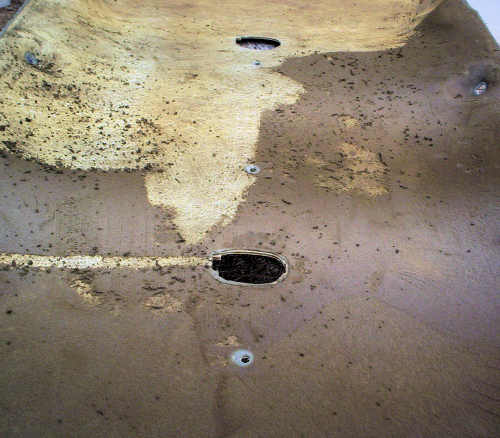

cleaning headliner board 99 plymouth grand voyager When the headliner board has been freed from everything that holds in place, it can be removed out the back gate of the Grand Voyager minivan. To clean the board, you can use a standard grill brush (wire brush) to scrape all the old foam off. The glue does not need to be removed, just the old deteriorated foam and the dust it creates. Get the board as clean as you can so the new material will adhere properly.

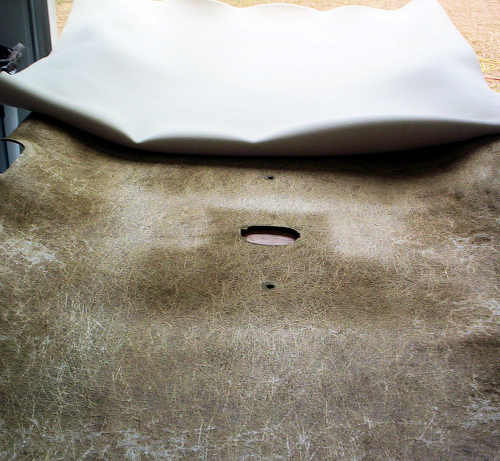

recovering the board Fit the new headliner material to the board, making sure there is plenty of over hang in the front and back, fold it back about half way and start applying the adhesive to the headliner board and the new headliner fabric. Apply the new material by "rubbing it out" good with your hands (palm and fingers outstretched flat). If you have any deep indentions in the headliner board, work the headliner material into the indention first; and then around it.
replacing grand voyager headliner board Give it a little time to set up and slide it back into the minivan, replace everything just like it came out and you will be good to go.

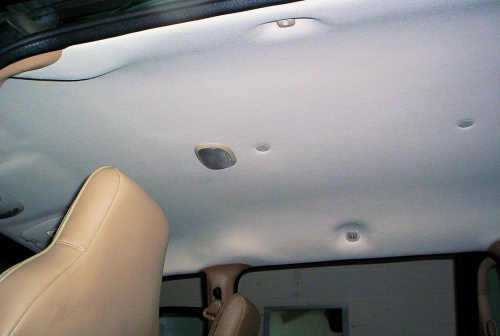

headliner replacement finished grand voyager If everything is done properly, you should have a finished job that looks like this - or like it did when you bought your vehicle.
The headliner color we used for the 1999 Plymouth Grand Voyager is 2037 lt neutral.
The grand and large minivan headliner kit is what we used for this Grand Voyager headliner [comes with 2 adhesives].
